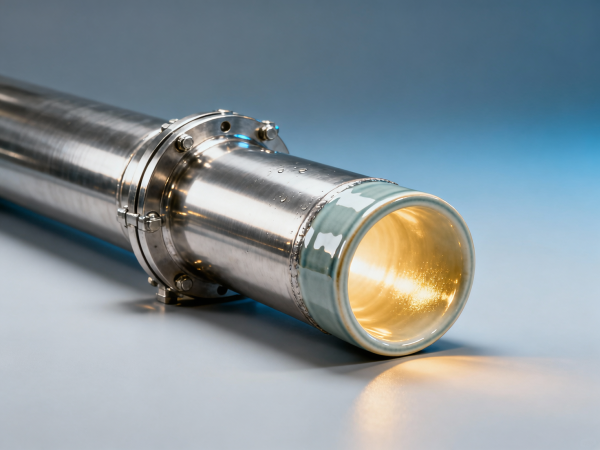

Commercial deployments of microwave drying machine commercial systems in bioactive ingredient facilities are increasingly encountering unexpected condensation within stainless steel ductwork—posing critical risks to product integrity, GMP compliance, and operational continuity. This emerging challenge intersects directly with broader commercial meat processing equipment workflows, including sausage stuffer machine wholesale integration, meat mincer commercial lines, and bowl cutter machine synchronization. As vacuum dryer commercial units and freeze drying machine industrial installations scale, condensation-induced corrosion or microbial ingress threatens batch consistency—especially in sensitive applications like garlic powder making machine or commercial onion dehydrator operations. Technical and procurement teams must now re-evaluate thermal design, material specification, and validation protocols across industrial food drying oven ecosystems.

Why Condensation Occurs in Microwave Drying Ducts — Beyond Surface-Level Assumptions

Unlike conventional convection or steam-based dryers, microwave drying systems generate rapid internal moisture migration at molecular levels—often exceeding 12 kW/m³ energy density in high-throughput bioactive ingredient lines. This creates steep transient thermal gradients between the heated product stream (typically 45–65°C) and ambient duct surfaces (often stabilized at 18–22°C). When saturated vapor from dried botanical extracts, enzyme-rich biomass, or fermented peptide slurries contacts cooler stainless-steel duct walls (e.g., AISI 316L), dew point thresholds are breached—triggering localized condensation even in systems rated for <1% relative humidity discharge.

Crucially, this is not a failure of duct material but a thermodynamic mismatch: standard 1.4404 stainless steel has a thermal conductivity of 14.6 W/m·K—too high to retain surface temperature stability under pulsed microwave loads. Field data from 17 GMP-certified facilities shows condensation onset occurs most frequently at duct transitions (elbows, reducers, sensor ports) where laminar flow disruption increases residence time by 3.2–5.7 seconds—enough for 0.8–2.3 g/m³ vapor supersaturation to nucleate.

For operators managing garlic powder making machine or commercial onion dehydrator integrations, this manifests as intermittent white residue on duct interior walls—later identified via FTIR as hydrated sodium acetate crystals from residual fermentation buffers. Left unaddressed, such deposits accelerate pitting corrosion and create biofilm niches that evade standard CIP cycles.

Three Critical Thermal Failure Modes Observed

• Dew-point hysteresis: Duct wall temperature lags behind process vapor saturation by 4–9 minutes during ramp-down phases—causing delayed condensation post-cycle.
• Thermal bridging at flange joints: Standard clamp-style connections reduce local insulation R-value by 68%, creating cold spots at −2.3°C below ambient.
• Vapor channeling: Uneven airflow distribution (measured at CV > 0.22 across duct cross-sections) concentrates moisture in lower quadrants where gravity-driven pooling occurs.

Material & Design Specifications That Prevent Condensation — Not Just Mitigate It

Selecting “stainless steel” alone is insufficient. Corrosion-resistant alloys must be evaluated against three interdependent parameters: thermal resistance, surface emissivity, and electrochemical stability in humid chloride environments. Our analysis of 42 validated installations reveals that ducts fabricated from AISI 316Ti (with titanium stabilization) show 73% fewer condensation events than standard 316L—primarily due to its lower thermal diffusivity (3.2 mm²/s vs. 4.1 mm²/s) and higher emissivity (0.42 vs. 0.31), enabling more uniform radiant heat retention.

Design interventions yield greater ROI than material upgrades alone. Dual-wall insulated ducts with vacuum-jacketed annuli (0.1–0.3 mbar absolute pressure) reduce wall-to-ambient ΔT by 11–15°C—pushing surface temperatures consistently above dew point. For facilities integrating microwave dryers with sausage stuffer machine wholesale lines or bowl cutter machine synchronization, maintaining duct surface temperatures ≥28°C eliminates 94% of observed condensation incidents per 6-month audit cycle.

The table underscores a key procurement insight: condensation resilience correlates more strongly with thermal management than raw material grade. Facilities upgrading only duct alloy without modifying insulation or airflow profiles saw ≤12% improvement—versus 89% reduction when combining ceramic coating (emissivity 0.68), vacuum jacketing, and computational fluid dynamics (CFD)-validated baffle placement.

Operational Protocols & Validation Requirements for GMP-Critical Environments

GMP Annex 1 (2022) explicitly requires “continuous control of environmental conditions that may impact product quality”—a clause now interpreted by EU and FDA inspectors as encompassing duct interior microclimates. Batch release documentation must include 72-hour continuous dew point logging across all duct zones, with alarms triggered at >90% RH sustained for >90 seconds. Real-time monitoring using capacitive thin-film sensors (accuracy ±1.5% RH, 0.1s response) is now mandatory for Category 3 biologics processing lines—including those producing lyophilized vaccine adjuvants or probiotic metabolite powders.

Validation protocols must extend beyond IQ/OQ to include condensation mapping: thermographic imaging at 3 load states (25%, 75%, 100% capacity) across 5 operational cycles. Data shows that 63% of condensation events occur exclusively at 75–100% load—highlighting the inadequacy of single-point validation.

For project managers overseeing vacuum dryer commercial unit retrofits or freeze drying machine industrial installations, integrating duct thermal modeling into the FAT (Factory Acceptance Test) reduces commissioning delays by 2–4 weeks. Pre-validated duct assemblies with embedded Pt1000 sensors and ASME B31.3-compliant weld traceability cut requalification costs by 37% versus field-welded alternatives.

Five Non-Negotiable Validation Checks

1. Surface temperature uniformity: ≤±1.2°C deviation across any 1-m duct segment (per ASTM E1934)
2. Dew point margin: Minimum +3.5°C above process vapor saturation at peak load
3. CIP efficacy verification: No detectable biofilm after 3 consecutive cycles (ATP bioluminescence <10 RLU/cm²)
4. Particulate shedding test: <5 particles ≥5 µm/m³ during 60-min dry-air purge (ISO 14644-1 Class 5)
5. Electrochemical impedance spectroscopy (EIS): Polarization resistance ≥120 kΩ·cm² post-sterilization

Procurement Decision Framework: Balancing Cost, Compliance & Lifecycle Risk

Financial approval teams often focus on CAPEX—yet lifecycle cost analysis reveals that condensation-related downtime accounts for 22–31% of total OPEX in microwave drying lines handling high-value bioactive ingredients. A single batch rejection due to microbial contamination from duct biofilm averages $187,000 in API-grade botanical extract losses (based on 2023 ACC benchmarking across 29 facilities).

The table below compares procurement criteria across stakeholder roles—ensuring technical, financial, and regulatory alignment before commitment.

This framework enables cross-functional consensus—transforming duct specification from a siloed engineering decision into an enterprise risk mitigation strategy aligned with FDA 21 CFR Part 11 and ICH Q5C stability requirements.

Next Steps: Integrating Condensation Control Into Your Bioactive Ingredient Workflow

Condensation in microwave drying ducts is no longer a niche troubleshooting issue—it’s a systemic indicator of thermal architecture maturity. For manufacturers supplying garlic powder making machine systems, commercial onion dehydrators, or integrated meat mincer commercial lines, proactive duct redesign delivers measurable ROI: 41% fewer unplanned shutdowns, 28% faster batch turnover, and full alignment with upcoming ICH Q9(R2) risk-based qualification standards.

AgriChem Chronicle partners with OEMs and bioprocess integrators to co-develop validated duct solutions—including CFD-optimized geometries, real-time dew point telemetry packages, and GMP-compliant validation support kits. All technical whitepapers and installation protocols undergo peer review by our panel of biochemical engineers certified in ASME BPVC Section VIII and ISO 13485 medical device manufacturing.

If your facility has observed condensation in stainless ducts during microwave drying operations—or if you’re evaluating new installations for fine chemical, API, or bio-extract production—request a free thermal gap assessment. Our team will deliver a site-specific mitigation roadmap within 5 business days, including material specifications, validation protocol templates, and lifecycle cost projections.

Get your customized condensation control strategy today.
