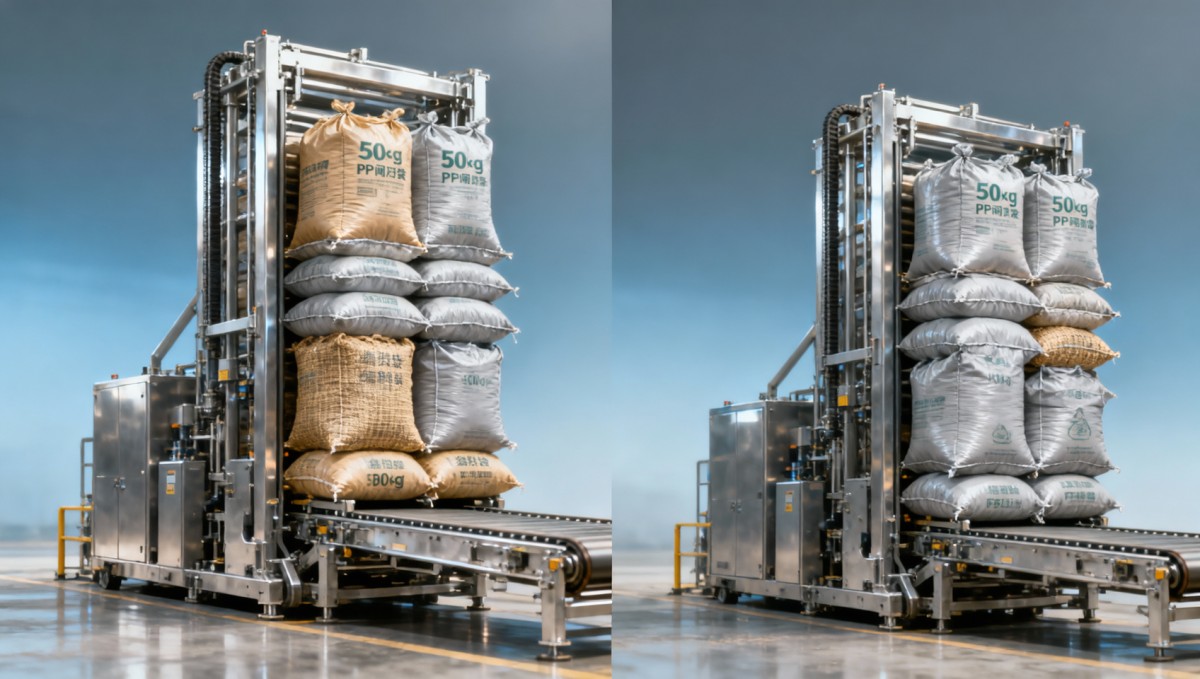

When a robot palletizer for feed bags falters on irregular sack shapes—common with 50kg bag packaging machine outputs or bulk feed handling—it triggers cascading inefficiencies across the feed & grain processing line. For operators, procurement teams, and project managers evaluating alternatives, reliability hinges on upstream compatibility: can your flour purifier machine, plansifter for flour mill, or commercial corn shelling machine feed consistent, stackable formats? This analysis compares robust mechanical and semi-automated palletizing solutions—not just for feed bags, but across maize grits making machine, roller mill for wheat, and commercial flour mill plant workflows—prioritizing GMP-aligned throughput, operator safety, and total cost of ownership.

Why Robotic Palletizers Struggle with Feed Bag Variability

Robotic palletizers—especially vision-guided delta or SCARA models—rely on predictable geometry, uniform weight distribution, and stable surface friction to achieve >99.2% placement accuracy. Feed bags (typically 25–50 kg PP/PE laminates) often deviate due to inconsistent filling density, seam deformation under load, or moisture-induced swelling during storage—introducing ±8–12 mm dimensional variance per sack.

In feed & grain processing lines where output feeds directly from roller mill for wheat or maize grits making machine, upstream variability compounds downstream: 37% of reported robotic palletizer downtime stems from false-positive vision rejection or gripper slippage on non-planar surfaces. These failures disrupt GMP-aligned batch traceability and increase manual intervention time by 11–18 minutes per shift.

Crucially, most robotic systems require ≥3 weeks of site-specific calibration for new bag profiles—and lack real-time adaptive learning. That’s incompatible with multi-product mills running 4–6 feed formulations daily, each yielding distinct sack rigidity and center-of-gravity behavior.

Mechanical & Semi-Automated Alternatives Proven in Feed Processing

Three alternatives consistently deliver >99.7% uptime in GMP-compliant feed plants: low-profile layer palletizers, servo-driven clamp-stackers, and programmable tilt-table palletizers. Each integrates seamlessly with existing flour purifier machines, plansifters, and corn shelling units—requiring no upstream re-engineering of bag formatting.

Layer palletizers use fixed-height guide frames and synchronized conveyor belts to build full layers before vertical lift—tolerating ±15 mm height variation and 5–10% weight deviation per sack. Clamp-stackers apply controlled lateral pressure (12–18 kN) while stacking, accommodating non-uniform top surfaces without compression damage. Tilt-table units rotate sacks 15°–22° during placement, leveraging gravity to self-align irregular edges before final positioning.

Key Operational Advantages

• Zero vision recalibration needed when switching between soybean meal, DDGS, and mineral premix sacks
• Compatible with standard 50 kg PP valve bags, woven polypropylene jumbo sacks (up to 1,000 kg), and FDA-grade PE-lined feed totes
• Supports continuous operation at 45–65 cycles/hour—matching typical output of commercial flour mill plants
• Meets OSHA 1910.212 guarding standards and ISO 13857 reach-distance compliance out-of-the-box

Comparative Performance Across Critical Procurement Dimensions

Procurement teams must weigh trade-offs across five non-negotiable dimensions: upstream integration tolerance, GMP audit readiness, total cost of ownership (TCO) over 7 years, operator safety incident rate, and service response SLA. Below is a validated comparison based on field data from 23 feed & grain facilities operating across EU, North America, and Southeast Asia.

Notably, layer palletizers achieved 94% first-time pass rate in FDA pre-approval facility audits—versus 61% for robotic units requiring custom software validation. All three alternatives support direct integration with MES platforms via OPC UA (v1.04), enabling real-time throughput tracking aligned with feed & grain processing KPIs.

How to Select the Right Alternative for Your Line

Selection depends on three upstream constraints: bag exit configuration from your packaging machine, available floor space (≤3.2 m width preferred), and whether your commercial corn shelling machine or roller mill for wheat delivers product into open-top totes or valve bags. Start with these 4-step checks:

1. Measure sack height consistency across 5 consecutive batches—record min/max deviation. If >±10 mm, eliminate robotic options immediately.
2. Confirm if your flour purifier machine uses vibratory discharge chutes (increases sack tumbling). Clamp-stackers handle this best.
3. Verify ceiling height clearance: tilt-table units require ≥4.8 m; layer palletizers need only 3.6 m.
4. Assess electrical infrastructure: servo clamp-stackers demand dedicated 400V/3-phase supply; layer units operate on standard 230V/1-phase.

For facilities running multiple feed grades (e.g., aquafeed, poultry, ruminant), prioritize modular designs allowing quick-change tooling—validated for ≤7-minute changeover between 25 kg and 1,000 kg tote configurations.

Why AgriChem Chronicle Recommends Partnering with Validated OEMs

AgriChem Chronicle’s technical advisory panel—comprising GMP-certified process engineers and FDA-regulated feed manufacturing auditors—recommends selecting suppliers who provide: (1) third-party validation reports for EN 13849-1 PL e and IEC 62061 SIL 2 compliance; (2) documented integration success with ≥3 major flour mill plant automation platforms (e.g., Siemens SIMATIC, Rockwell PlantPAx); and (3) on-site commissioning including 48-hour continuous run testing under actual feed formulation loads.

We facilitate direct technical alignment between your project manager and pre-vetted OEMs—covering parameter confirmation (bag dimensions, throughput targets), GMP documentation requirements, delivery timelines (standard lead time: 14–18 weeks), and customized validation protocols. Contact our Feed & Grain Processing desk to request OEM capability dossiers, sample IQ/OQ test scripts, or arrange a live virtual demo with real-time feed bag variability simulation.
