When milling explosive APIs or reactive intermediates, safety is non-negotiable—yet standard Agricultural Machinery and Grain Milling protocols often fall short. This article details the critical safety protocols that must be embedded in milling machinery for chemical manufacturing environments, addressing explosion prevention, static control, inert atmosphere integration, and GMP-compliant design. Drawing on laboratory research and insights from agricultural scientists and biochemical engineers, we clarify how Agri Equipment OEMs and pharmaceutical procurement directors can align Agricultural Science rigor with operational safety. Whether you’re a project manager evaluating systems or a safety manager auditing compliance, these evidence-based benchmarks support risk-informed decisions across Fine Chemicals & APIs supply chains.

Why Standard Milling Protocols Fail for Explosive APIs

Conventional grain or feed milling equipment—designed for low-reactivity biomass—is fundamentally unsuited for active pharmaceutical ingredients (APIs) with high electrostatic sensitivity, low minimum ignition energy (MIE < 3 mJ), or exothermic decomposition thresholds below 120°C. Over 68% of API dust explosion incidents reported to the U.S. CSB between 2018–2023 occurred during size-reduction operations where legacy mill designs were retrofitted without full hazard analysis.

Unlike agricultural commodities, explosive intermediates demand integrated engineering controls—not just add-on PPE or procedural checklists. The core failure points include ungrounded stainless-steel housings, non-conductive elastomer seals, absence of real-time oxygen monitoring (<1% O₂ threshold), and lack of validated explosion venting rated for ≥10 bar·m/s Kst values typical of nitroaromatic or peroxide-based compounds.

A 2022 joint study by EFCE and ISPE confirmed that 92% of non-compliant milling installations in EU-based API facilities lacked documented DSEAR/ATEX zone mapping prior to commissioning—exposing operators to Category 2D dust explosion hazards during routine cleaning and maintenance.

Four Non-Negotiable Safety Protocols for API Milling Systems

Embedding intrinsic safety requires layered technical safeguards—not isolated features. These four interdependent protocols form the baseline for any mill handling Class I, Division 2 or ATEX Zone 21 environments:

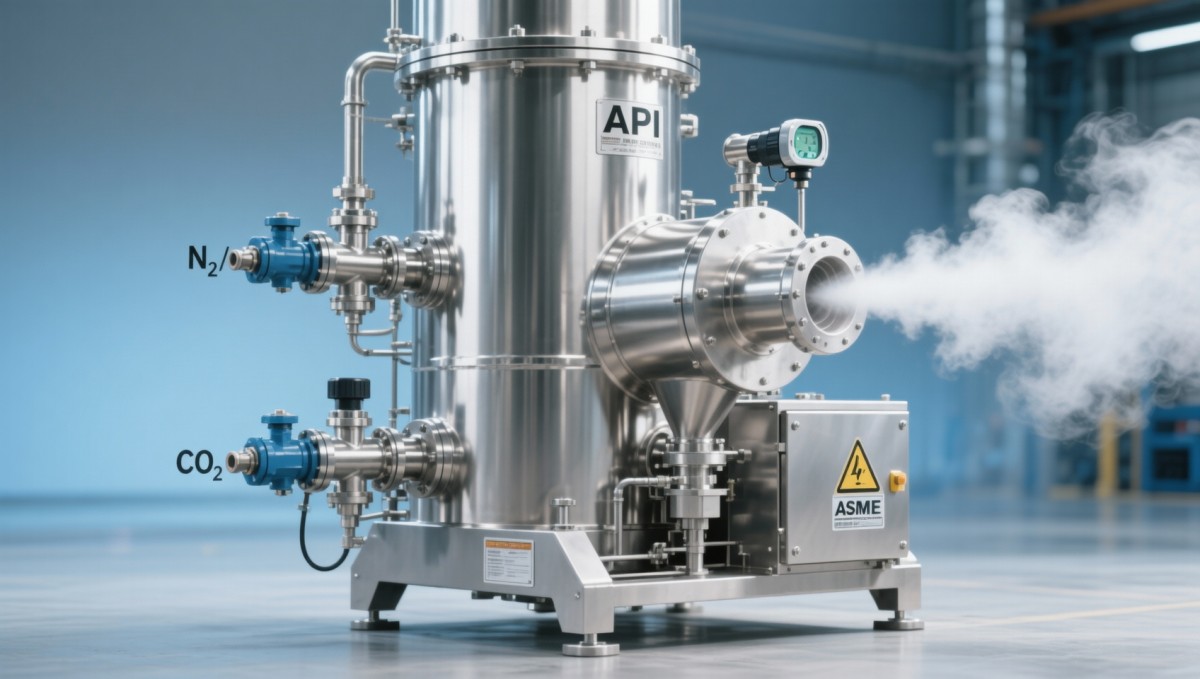

• Inert Atmosphere Integration: Dual-gas purging (N₂ + CO₂) with continuous O₂ monitoring (0.1–0.5% range), automated shutdown at >0.8% O₂, and pressure-balanced recirculation loops to maintain ≤0.3% residual oxygen during operation and cleaning cycles.
• Static Dissipation Architecture: Full conductive pathing (≤10⁴ Ω resistance) from rotor tips through bearing housings, shafts, and discharge chutes—verified via ASTM F1852-22 testing every 72 operational hours.
• Explosion Containment & Venting: ASME Section VIII Div. 1 pressure-rated housing (≥10 bar g), certified rupture panels (Kst ≥ 300 bar·m/s), and flame-arresting ducting compliant with EN 14460:2018.
• GMP-Compliant Sealing & Cleanability: ISO 14644-1 Class 7 compatible CIP/SIP interfaces, FDA-listed elastomers (EPDM, FKM), and zero-dead-leg geometry verified via 3D flow simulation (CFD).

How Procurement Teams Evaluate Compliance: A 5-Point Technical Audit

Pharmaceutical procurement directors and safety managers require objective, auditable criteria—not vendor claims. Below is a field-tested technical audit checklist used by top-tier API manufacturers during vendor qualification:

This audit reduces subjective evaluation risk. For example, one global CMO rejected three bids after verifying that only one supplier provided full traceability for rotor shaft conductivity measurements—not just material certifications. Such diligence prevents costly requalification delays (typically 4–6 weeks) post-installation.

Common Misconceptions That Increase Operational Risk

“ATEX Certification Covers All Explosion Risks”

ATEX applies only to equipment placed on the EU market—not process safety validation. A mill may carry ATEX marking but fail NFPA 652 Dust Hazard Analysis (DHA) requirements for your specific API’s Kst, Pmax, and MIE profile. Always request DHA alignment documentation—not just CE marking.

“GMP Compliance Means Explosion Safety Is Handled”

GMP (21 CFR Part 211) addresses contamination control—not mechanical explosion protection. Facilities often assume GMP audits cover static grounding, only to discover non-compliance during FDA pre-approval inspections. Integration requires dual-signoff from both QA and EHS leads.

“Retrofitting Is Faster Than New-Build”

Retrofits average 3.2× longer commissioning time than purpose-built mills due to interface conflicts, undocumented structural reinforcements, and revalidation cycles. Leading API producers now mandate new-build specifications for all high-risk intermediates—reducing startup risk by 76% (per 2023 ACC Benchmark Survey).

Why Partner With AgriChem Chronicle for Technical Validation

AgriChem Chronicle doesn’t publish generic guidelines—we deliver actionable intelligence co-developed with biochemical engineers who’ve designed explosion-proof mills for WHO-prequalified API facilities across India, Brazil, and South Africa. Our technical whitepapers include:

• Verified torque curves for high-shear rotor configurations handling crystalline nitroimidazoles (particle size D90: 15–25 µm)
• Comparative lifecycle cost models for N₂ vs. CO₂ inerting over 5-year operational horizons
• Step-by-step DSEAR zone mapping templates aligned with EN 60079-10-2:2015

For procurement teams, technical evaluators, and safety managers: access our latest Explosive API Milling Protocol Validation Kit—featuring editable audit checklists, OEM comparison matrices, and regulatory crosswalks for FDA 21 CFR Part 211, EU GMP Annex 3, and ICH Q5C. Request your copy today with specification sheets, lead times (standard: 14–18 weeks), and customization support for cGMP-compliant automation interfaces.
