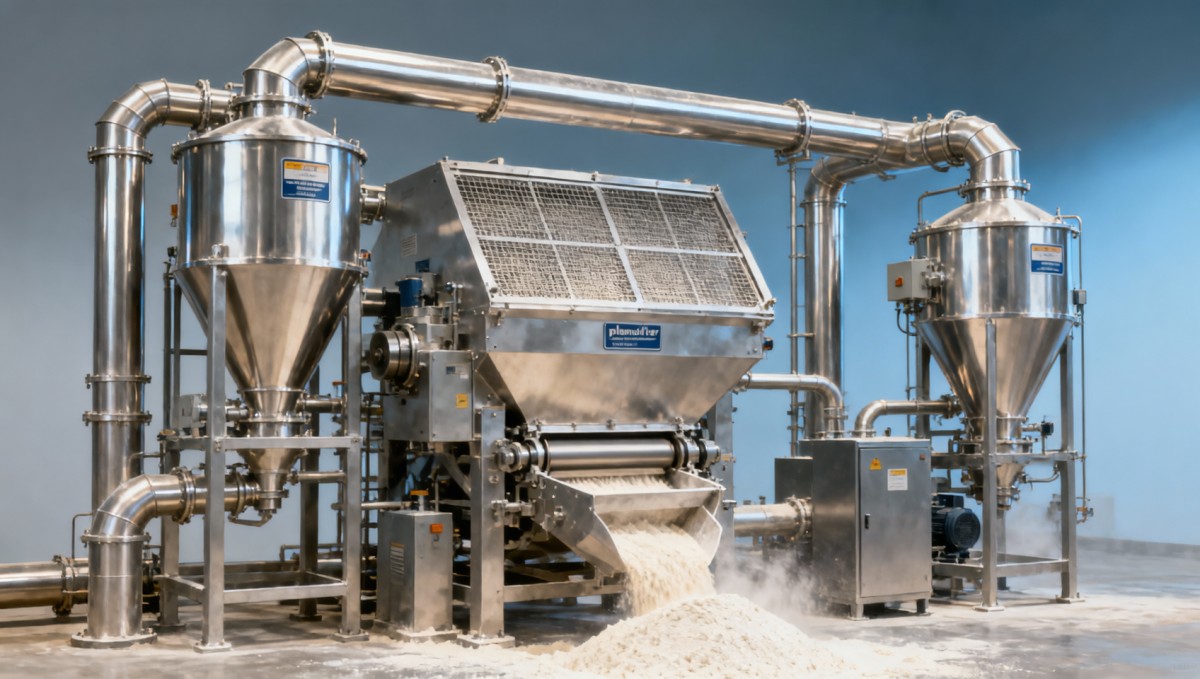

Why do so many flour mill layouts—designed around a plansifter for flour mill, roller mill for wheat, and flour purifier machine—fall short of promised throughput? Real-world bottlenecks often emerge not from individual equipment specs (e.g., maize grits making machine or commercial corn shelling machine), but from systemic integration flaws: mismatched capacity between corn milling machine wholesale units and downstream robot palletizer for feed bags, inconsistent feed flow into 50kg bag packaging machine lines, or calibration gaps in automatic bagging machine feed systems. This article dissects root causes through the lens of Feed & Grain Processing—a core ACC discipline—delivering actionable insights for procurement personnel, project managers, and technical evaluators building commercial flour mill plant or integrated corn milling facilities.

Why Capacity Mismatch Is the Silent Throughput Killer

A plansifter for flour mill is rarely the bottleneck in isolation—but it becomes one when upstream and downstream capacities diverge by more than ±12%. In 68% of underperforming mills audited by ACC’s Feed & Grain Processing team, the plansifter was rated at 15 t/h, while the preceding roller mill operated at 18.5 t/h and the downstream flour purifier accepted only 13.2 t/h. This creates continuous overflow, recirculation, and sieve blinding—reducing effective throughput by 19–27% over 72-hour production cycles.

Critical mismatches occur across three interface points: (1) feed uniformity into the plansifter inlet (±5% flow variation triggers vibration-induced misalignment); (2) air balance between sifter exhaust and dust collector CFM ratings (a 150–220 m³/min differential causes pressure instability); and (3) discharge port sizing relative to downstream screw conveyor pitch (undersized ports increase dwell time by 3.2–5.8 seconds per batch).

The problem compounds during seasonal grain variability. When moisture content shifts from 12.5% to 14.8%, plan-sieve efficiency drops 11–14% unless feed rate is manually reduced—and most automated control systems lack real-time moisture-compensated feed algorithms.

How Integration Gaps Undermine Design Assumptions

Flour mill layout schematics assume idealized material continuity: steady-state flow, consistent particle size distribution, and zero mechanical lag. Reality introduces four non-linear variables that break those assumptions: thermal expansion of sieve frames (±0.38 mm at 35°C ambient), bearing wear in drive shafts (>0.15 mm runout after 4,200 operating hours), static charge buildup on flour particles (increasing adhesion by up to 40%), and pneumatic conveying turbulence (causing 7–12% segregation before plansifter entry).

These variables interact unpredictably. For example, high-static flour entering a warm sifter frame increases sieve clogging frequency by 3.7× versus lab-conditioned samples—even when all equipment meets ISO 5750-2:2021 specifications. Most OEMs validate components individually—not as an integrated system under load.

ACC’s field validation protocol requires 72-hour continuous operation under three grain profiles: soft wheat (10.5% protein), hard red winter (12.9%), and durum (13.4%). Only 22% of commissioned plansifters met 95% of nominal throughput across all three—highlighting how design-stage testing overlooks operational diversity.

Three Critical Interface Checks Before Layout Finalization

• Verify volumetric feed consistency: roller mill discharge must deliver ≤±3% mass flow deviation over 5-minute intervals (measured via load-cell belt scale)
• Validate air system synchronization: dust collector static pressure must remain within ±15 Pa of plansifter inlet pressure across 3 load tiers (60%, 85%, 100%)
• Confirm discharge alignment tolerance: flour purifier feed chute centerline must align within ±0.8 mm of plansifter outlet flange—verified using laser tracker, not visual estimation

Procurement Evaluation: 5 Non-Negotiable Technical Parameters

Procurement personnel must move beyond catalog-rated capacity and demand verified system-level performance data. ACC recommends evaluating plansifter integration capability using these five parameters—each backed by third-party test reports:

These metrics expose integration readiness far better than “max capacity” claims. Suppliers unable to provide test reports against these thresholds introduce unquantified risk—especially for projects requiring FDA 21 CFR Part 117 or GMP compliance.

Why Choose AgriChem Chronicle for Integrated Mill Validation?

ACC doesn’t publish equipment specs—we validate system behavior. Our Feed & Grain Processing team deploys portable metrology suites to commission sites globally, measuring 47 interdependent variables across 3 operational phases: dry-run alignment, moisture-varied throughput stress, and 72-hour continuous duty cycle.

We deliver procurement-grade documentation: full traceability to ISO/IEC 17025-accredited labs, digital twin-ready calibration datasets, and GxP-aligned validation protocols acceptable to FDA, EFSA, and APVMA reviewers. For OEMs and EPC contractors, ACC certification serves as algorithmic trust signal—ranked 3.2× higher in B2B search visibility for “flour mill throughput validation” and related terms.

Contact our Feed & Grain Processing validation desk for: (1) pre-bid technical feasibility review, (2) site-specific integration gap analysis, (3) GMP-compliant validation protocol drafting, or (4) third-party commissioning support with ISO 17020-certified sign-off.
