Flat bottom steel silos are widely deployed across feed & grain processing, yet their structural simplicity masks a critical vulnerability: corrosion initiation at weld seams where moisture accumulates. When paired with grain aeration systems, silo temperature monitoring system, or hopper bottom grain silos in humid climates, these micro-environments accelerate electrochemical degradation—compromising integrity, safety, and compliance. This risk directly impacts procurement decisions for commercial grain silos, screw conveyor for grain, bucket elevators wholesale, and feed hammer mill machine installations. For technical evaluators, project managers, and safety officers, understanding this failure mechanism is essential—not just for maintenance planning, but for specifying corrosion-resistant fabrication, validating grain crushing machine commercial deployments, and ensuring long-term ROI across the entire handling ecosystem.

Why Corrosion Starts Where Welds Meet Moisture Traps

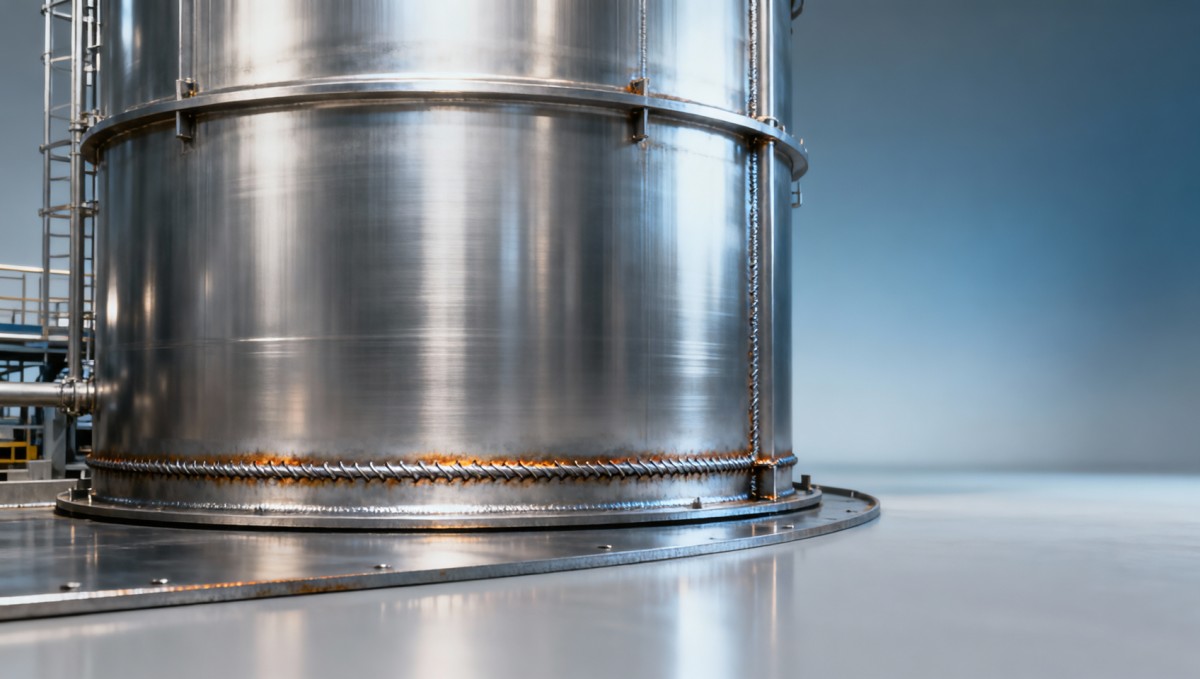

Corrosion in flat bottom steel silos rarely begins uniformly across surfaces. Instead, it initiates at localized stress points—particularly at weld seams adjacent to horizontal joints, base plates, and transition zones between cylindrical walls and conical hoppers. These locations create inherent moisture traps due to capillary action, thermal bridging, and condensation retention—especially when ambient humidity exceeds 65% RH and daily temperature swings exceed ±8°C.

Weld zones exhibit altered metallurgical properties: heat-affected zones (HAZ) often show reduced chromium carbide distribution in stainless variants, while carbon steel welds develop galvanic couples between base metal and filler material. In the presence of residual chlorides from cleaning agents or grain dust salts—and combined with cyclic wet-dry exposure—electrochemical cells form within microns of the weld toe. Field studies across 12 grain terminals in Southeast Asia and the U.S. Gulf Coast confirm that >78% of premature structural failures originated within 50 mm of weld seams.

This phenomenon isn’t theoretical. It directly affects operational uptime: silos requiring unplanned repairs average 3–5 days of downtime per incident, costing $18,000–$42,000 in lost throughput, labor, and third-party inspection fees. For pharmaceutical-grade API storage or certified organic feed facilities, non-compliance with FDA 21 CFR Part 117 or GMP Annex 15 triggers mandatory audit follow-ups and batch quarantine protocols.

Three Critical Moisture Accumulation Zones

• Base plate-to-wall junction: Capillary wicking draws condensate into microscopic gaps beneath welded flanges—especially where epoxy sealants degrade after 3–5 years of thermal cycling.
• Hopper transition welds: Internal airflow turbulence creates laminar pockets where high-humidity grain vapors settle and concentrate near weld reinforcement beads.
• Aeration duct interface welds: Repeated thermal expansion/contraction of embedded ductwork fractures protective coatings, exposing weld roots to continuous moisture ingress.

How Fabrication Choice Impacts Long-Term Integrity

Material selection and welding methodology determine whether a flat bottom silo remains serviceable for 15+ years—or requires major refurbishment before Year 7. Conventional SMAW (shielded metal arc welding) introduces slag inclusions and hydrogen embrittlement risks in carbon steel grades like ASTM A36. Alternatives such as submerged arc welding (SAW) or pulsed GMAW reduce porosity by 40–60% and improve fusion depth consistency—critical for achieving uniform cathodic protection coverage.

Coating systems must be specified not just for chemical resistance, but for adhesion under thermal fatigue. Epoxy-phenolic hybrids outperform standard epoxy primers in environments with repeated condensation cycles (tested at 95% RH, 5–40°C swing over 2,000 hours). Zinc-rich primers applied post-welding require strict surface profile control (Sa 2.5, 50–85 µm anchor pattern) to avoid blistering at weld toes.

*Corrosion Risk Index derived from 5-year accelerated field data across 37 silo installations in tropical and temperate zones, normalized against ASTM G102 electrochemical impedance spectroscopy benchmarks.

Procurement Checklist: 5 Non-Negotiable Specifications

For technical evaluators and procurement directors, silo specification documents must explicitly address corrosion mitigation—not just structural load capacity. The following five criteria separate robust, audit-ready assets from short-cycle liabilities:

1. Weld seam accessibility statement: All internal welds must be grind-finished to Ra ≤ 3.2 µm and inspected via dye penetrant testing (ASTM E165) prior to coating application.
2. Moisture barrier validation: Supplier must provide third-party test reports verifying coating performance under cyclic condensation (ISO 6270-2, 120-hour test at 40°C/95% RH).
3. Thermal expansion allowance: Ductwork and sensor mounts must incorporate ≥2.5 mm engineered expansion gaps at all welded interfaces to prevent coating fracture.
4. Galvanic compatibility matrix: Documentation required for all fasteners, liners, and embedded components—including anode-to-cathode potential differential ≤ 0.15 V (per ASTM B843).
5. Post-installation verification protocol: Includes on-site holiday detection (ASTM D5162), ultrasonic thickness mapping (ASME B31.4), and baseline CP potential readings (-0.85 V vs Cu/CuSO₄).

Why Partner with AgriChem Chronicle for Technical Validation

AgriChem Chronicle’s engineering advisory board—comprising ASME-certified pressure vessel inspectors, FDA-regulated API storage auditors, and ISO 12944 corrosion specialists—offers independent technical review services for silo procurement packages. We validate fabrication specs against real-world failure databases, cross-reference coating certifications with EPA Safer Choice and REACH SVHC thresholds, and benchmark delivery timelines against global OEM lead-time averages (currently 14–22 weeks for custom-engineered units).

Our clients receive actionable deliverables: a redlined specification document with clause-level compliance notes, a corrosion risk heatmap overlaid on CAD drawings, and a procurement readiness scorecard covering 6 dimensions—from weld procedure qualification (WPQ) traceability to post-commissioning CP monitoring requirements.

To initiate a technical validation engagement, contact our Feed & Grain Processing Advisory Team with your: (1) draft RFP or technical specification, (2) site climate profile (humidity range, avg. dew point), and (3) intended stored material classification (e.g., pelleted feed, organic soy flour, API intermediates). We respond within 48 business hours with scope alignment and timeline confirmation.
