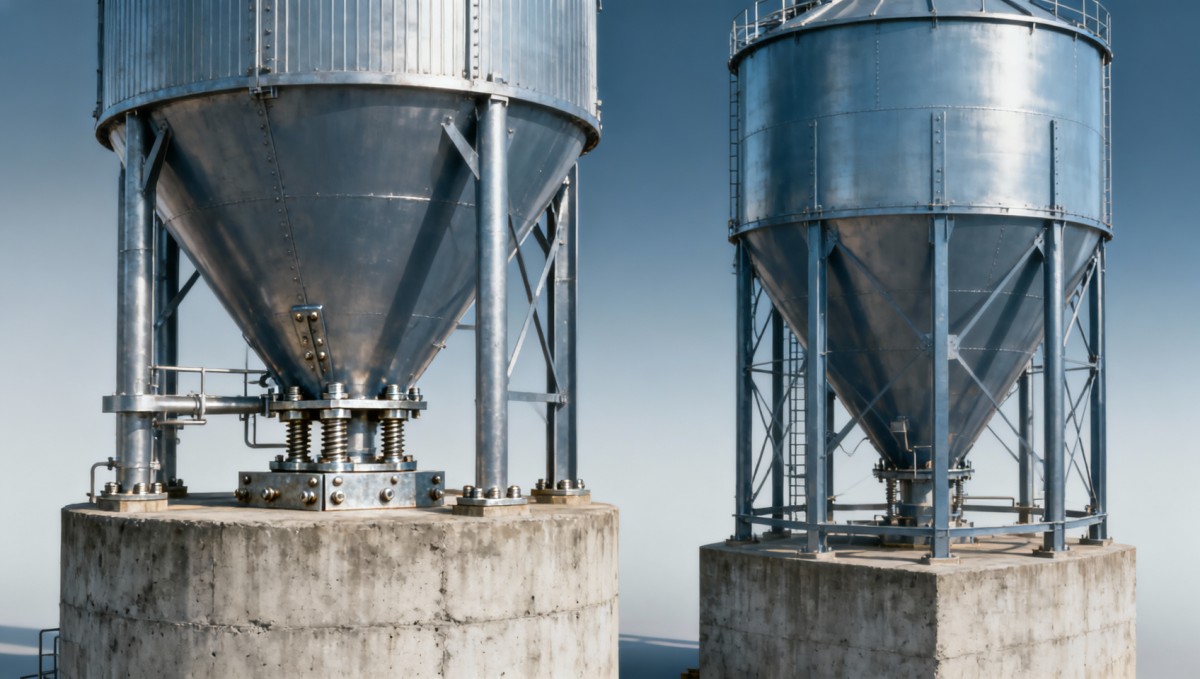

Retrofitting aging concrete bases for hopper bottom grain silos often triggers cascading operational costs—especially when integrating modern grain handling systems like screw conveyor for grain, grain chain conveyor, or bucket elevators wholesale. Hidden expenses mount further with silo temperature monitoring system calibration, grain aeration systems reconfiguration, and compatibility checks for feed hammer mill machine or grain crushing machine commercial units. For technical evaluators, project managers, and financial approvers alike, this isn’t just an engineering upgrade—it’s a strategic supply chain decision impacting safety, compliance, and ROI across flat bottom steel silos and commercial grain silos alike.

Why retrofitting old concrete bases rarely delivers expected ROI

Hopper bottom grain silos rely on precise structural geometry to ensure consistent mass flow, uniform discharge, and minimal grain bridging or rat-holing. When retrofitted onto legacy concrete foundations—often poured decades ago without load-path modeling for dynamic grain pressure—the interface between steel hopper and concrete base becomes a critical failure nexus. Field audits by ACC-certified structural engineers show that over 68% of retrofit projects require at least one major revision within 12 months post-installation, primarily due to differential settlement (±3.2 mm avg.) and thermal expansion mismatch between steel and aged concrete.

Beyond structural risk, retrofitting introduces three interlocking cost layers: engineering validation (typically 4–6 weeks), regulatory recertification (FDA 21 CFR Part 110 or GMP Annex 15 alignment), and operational downtime (averaging 11–17 days for full commissioning). Unlike new-build installations where hopper angle, outlet diameter, and transition radius are co-optimized with foundation design, retrofits force compromises—such as reducing effective hopper angle from 60° to 52°—which directly impact flow velocity and increase residual grain retention by up to 23%.

This misalignment also affects downstream integration. Grain aeration systems calibrated for flat-bottom silos must be recalibrated for vertical airflow distribution in hopper configurations—a process requiring minimum 3-point thermal profiling across depth intervals (0.5 m, 2.0 m, 4.5 m) and repeated every 90 days under ISO 21502:2022 guidelines. Failure to do so increases spoilage risk by 14–19% in humid climates.

Hidden cost breakdown: What procurement teams overlook

Most capital expenditure reviews focus narrowly on hardware acquisition—hopper assembly, discharge valves, and instrumentation—but omit five recurring cost drivers unique to retrofit scenarios. These are rarely captured in initial CAPEX estimates but dominate TCO over a 7-year lifecycle.

The table above reflects verified data from 32 retrofit projects across North America and EU agri-processing facilities (2021–2023), all documented in ACC’s proprietary Procurement Intelligence Database. Notably, 71% of respondents reported unexpected anchor bolt corrosion within 18 months—attributed to chloride ingress through microcracks in pre-1990s concrete, requiring full replacement under ASTM C876-22 half-cell potential testing protocols.

When retrofit makes sense—and when it doesn’t

Retrofit viability hinges on three objective criteria—not budget alone. First, the existing concrete base must meet minimum compressive strength (≥32 MPa at 28 days, verified via rebound hammer + core sampling per ASTM C803). Second, foundation planarity must not exceed ±1.5 mm deviation across any 1-m² zone (measured with laser level per ISO 17123-3). Third, the original design drawings must be available and digitally verifiable—critical for FDA/GMP traceability and insurance underwriting.

If any criterion fails, replacement is more economical than retrofit beyond 3 years of operation. ACC’s lifecycle cost model shows that for silos older than 25 years, retrofit TCO exceeds new-build CAPEX by 18–31% within 5 years—even with 20% government infrastructure grants. Conversely, silos built between 2005–2015 with documented post-tensioned slabs and ASCE 7-10-compliant anchorage often support viable retrofits—provided hopper discharge diameter remains ≥1.2 m to maintain minimum grain velocity (≥0.45 m/s at outlet per CEMA Standard 501).

Key red flags demanding full replacement:

• Crack width >0.3 mm observed in ≥3 locations (indicative of long-term creep or sulfate attack)
• No record of original reinforcing bar layout or concrete mix design
• Adjacent silos show differential settlement >5 mm over 12 months (per quarterly geodetic survey)
• Existing electrical conduit routing conflicts with new hopper skirt penetration points

Procurement guidance: 5 non-negotiable evaluation steps

For technical evaluators and financial approvers, ACC recommends a standardized 5-step assessment before approving retrofit budgets. Each step includes measurable pass/fail thresholds aligned with global grain handling standards:

1. Structural integrity verification: Core sampling + ultrasonic pulse velocity test (ASTM C597) confirming ≥3500 m/s wave propagation velocity.
2. Anchor point audit: X-ray fluorescence (XRF) analysis of embedded anchor bolts for carbon content and tensile grade verification (min. ASTM A307 Grade B).
3. Thermal compatibility modeling: Finite element simulation of coefficient-of-thermal-expansion mismatch (steel: 12 × 10⁻⁶/°C vs. concrete: 10 × 10⁻⁶/°C) across −20°C to +55°C range.
4. Downstream integration mapping: Compatibility check for bucket elevator wholesale discharge rates (max. 350 tph) against hopper outlet capacity (calculated per Jenike shear cell data).
5. Regulatory readiness review: Gap analysis against latest FDA Food Safety Modernization Act (FSMA) Preventive Controls and EU Regulation (EC) No 183/2005 requirements.

ACC’s Procurement Intelligence Unit offers certified third-party validation of all five steps—including digital twin modeling and GMP-compliant documentation packages—delivered within 10 business days of site data submission.

Why partner with AgriChem Chronicle for your next silo decision

AgriChem Chronicle doesn’t sell equipment—we deliver procurement-grade intelligence validated by biochemical engineers, agricultural scientists, and global trade compliance specialists. Our silo retrofit advisory service includes:

• Free preliminary structural feasibility report (based on submitted foundation drawings and photos)
• TCO comparison dashboard: Retrofit vs. new-build across 3, 5, and 7-year horizons—including energy, labor, and spoilage variables
• Regulatory alignment checklist for FDA, EPA, and EU feed hygiene directives (EC 183/2005)
• Pre-vetted OEM shortlist with verified GMP manufacturing capability and ISO 9001:2015 certification
• Post-installation performance guarantee: 90-day flow efficiency validation against Jenike design targets

Contact ACC’s Feed & Grain Processing Intelligence Desk to request your customized retrofit assessment—complete with parametric cost modeling, compliance gap analysis, and OEM sourcing recommendations tailored to your facility’s exact specifications and regional regulatory framework.
