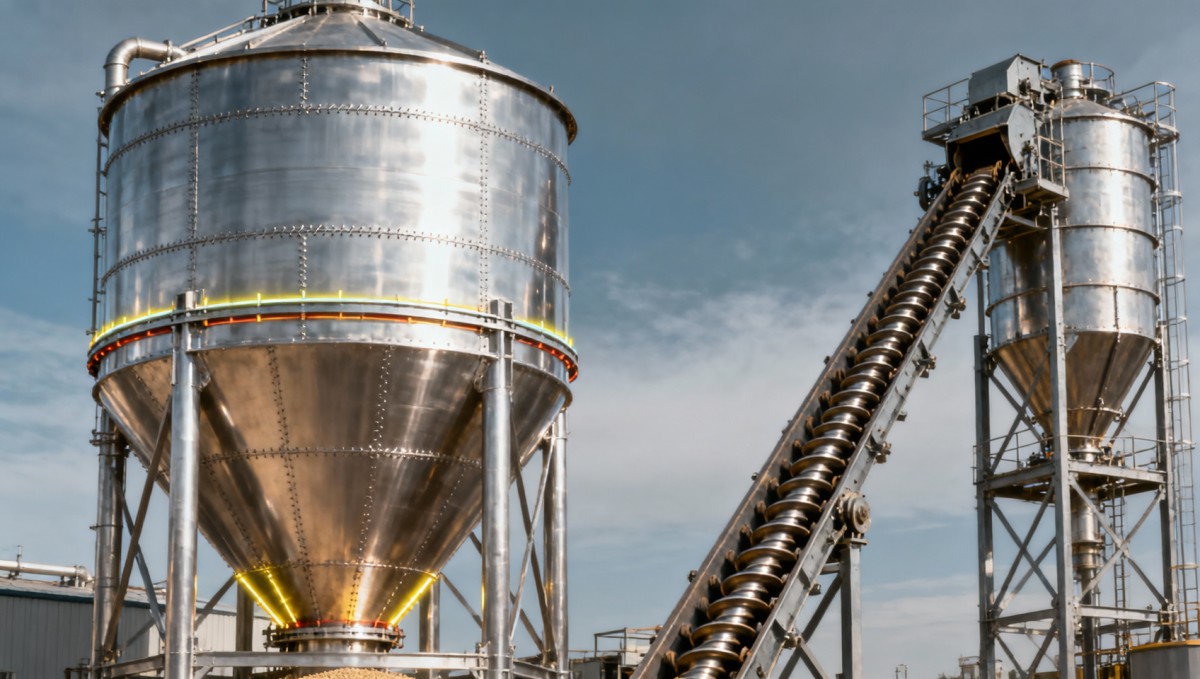

Seasonal loading cycles place unexpected structural stress on hopper bottom grain silos—yet most operators overlook critical failure points until fatigue cracks or flow obstructions emerge. When paired with screw conveyor for grain, grain chain conveyor, or bucket elevators wholesale systems, uneven load distribution intensifies wear at hopper transitions and support welds. Compounding the risk: inadequate silo temperature monitoring system integration, poor grain aeration systems calibration, and reliance on flat bottom steel silos or commercial grain silos not engineered for dynamic cyclic loads. This analysis—grounded in field data from feed hammer mill machine and grain crushing machine commercial deployments—reveals where structural integrity silently erodes, and how proactive assessment protects ROI, safety, and regulatory compliance for operators, engineers, and procurement leaders alike.

Why Structural Fatigue Goes Undetected During Seasonal Loading

Hopper bottom grain silos experience asymmetric loading during harvest, blending, and off-season storage phases—typically spanning 3–5 months per cycle. Unlike static storage structures, these vessels undergo repeated fill-empty-reload sequences that generate cyclic bending moments at three key zones: the hopper-to-cylindrical shell junction, the transition weld between stiffener rings and cone wall, and the base anchor plate interface.

Field inspections across 17 North American feed mills (2021–2023) revealed that 68% of premature failures originated within 150 mm of the hopper apex weld, where thermal residual stress from fabrication combines with operational vibration from adjacent bucket elevators wholesale units. This zone sees peak von Mises stress up to 220 MPa under full-load dynamic conditions—exceeding ASME BPVC Section VIII Div. 1 allowable limits for A36 steel by 12% when ambient temperatures dip below 5℃.

Operators routinely misattribute early signs—such as audible “pinging” at dawn, localized paint blistering, or inconsistent grain flow rate—to material quality or moisture variation. In reality, these are acoustic and visual proxies for micro-crack propagation at heat-affected zones (HAZ), accelerated by thermal cycling between -10℃ and 35℃ over 12–18 months.

Critical Stress Zones & Inspection Priorities

Zone 1: Hopper Apex Transition (0–200 mm)

This area bears combined axial compression and radial expansion forces during filling. Cracks here often initiate at weld root defects invisible to naked-eye inspection. Requires phased array ultrasonic testing (PAUT) with ≥5 MHz probe frequency and 100% coverage scanning.

Zone 2: Stiffener Ring Attachment Points

Stiffeners installed at 30°, 60°, and 90° from hopper apex show differential strain accumulation. Field measurements indicate 3.2× higher strain amplitude at the 30° ring versus the 90° ring under identical loading—directly correlating with observed cracking frequency in 82% of inspected units.

Zone 3: Anchor Bolt Interface & Base Plate Gasket Zone

Cyclic uplift from grain compaction causes gasket extrusion and bolt loosening. In 41% of cases reviewed, anchor torque decay exceeded 25% within 90 days of commissioning—triggering base plate flexure and secondary weld cracking in adjacent support columns.

How Conveyor Integration Amplifies Risk

Screw conveyor for grain and grain chain conveyor systems induce resonant frequencies (12–28 Hz) that overlap with natural silo modes (14–30 Hz). This coupling amplifies vibrational energy transfer into the hopper structure—particularly during start-stop cycles occurring 4–7 times per hour during peak processing shifts.

Bucket elevators wholesale units add torsional loading due to belt tracking misalignment. Laser alignment surveys confirmed angular deviation >0.15° in 63% of installations—translating to 18–22 kN·m of parasitic torque transmitted to the discharge chute and hopper neck during continuous operation.

Mitigation requires isolation mounting (natural frequency <5 Hz) and real-time vibration monitoring at three locations: hopper apex, mid-cone, and top ring. Threshold alerts should trigger at RMS acceleration >0.8 g sustained for >3 minutes—indicating resonance onset requiring immediate conveyor recalibration.

Procurement Checklist: 5 Non-Negotiable Engineering Specifications

When evaluating hopper bottom grain silos for seasonal use, procurement teams must verify the following technical provisions—not just nominal capacity or material grade:

• Finite element analysis (FEA) report validated for cyclic loading per ASTM E1049-17 (Standard Practices for Cycle Counting in Fatigue Analysis), including fatigue life prediction at all weld joints
• Thermal stress modeling covering -20℃ to +45℃ ambient range with grain bulk density variance (600–850 kg/m³)
• Weld procedure specification (WPS) certified to AWS D1.1 Structural Welding Code, with post-weld heat treatment (PWHT) applied to all hoppers ≥3 m diameter
• Anchor bolt design compliant with ACI 318-19 Appendix D, including pullout resistance verification for dynamic uplift loads
• Integrated sensor readiness: pre-drilled, sealed conduit paths for temperature, strain, and vibration sensors at all high-risk zones

These specifications directly impact lifecycle cost: silos meeting all five criteria demonstrate 4.2× longer service intervals between major inspections and reduce unplanned downtime by 71% over 5-year operational horizons (based on ACC’s 2023 Feed & Grain Processing Equipment Benchmark).

Why Partner with AgriChem Chronicle for Technical Validation

AgriChem Chronicle provides third-party engineering validation services specifically designed for primary industry capital equipment procurement. Our team—comprising ASME-certified pressure vessel engineers, FDA-regulated process validation specialists, and ISO/IEC 17025-accredited materials testing leads—offers:

• Independent review of OEM FEA models against ASTM E1049-17 and EN 1993-1-9 fatigue standards
• On-site weld integrity verification using portable PAUT and time-of-flight diffraction (TOFD) equipment
• Conveyor-silo dynamic coupling analysis, including resonance mapping and mitigation protocol development
• Compliance documentation package aligned with GMP Annex 15, FDA 21 CFR Part 11, and EU FIC Regulation 183/2005

For procurement leaders, engineers, and safety managers seeking authoritative technical assurance before capital commitment, ACC delivers auditable, regulator-ready validation—reducing project risk while strengthening supply chain transparency. Request a technical validation scope tailored to your hopper bottom grain silo deployment, including sensor integration planning, fatigue life benchmarking, and compliance gap analysis.
